Introduction

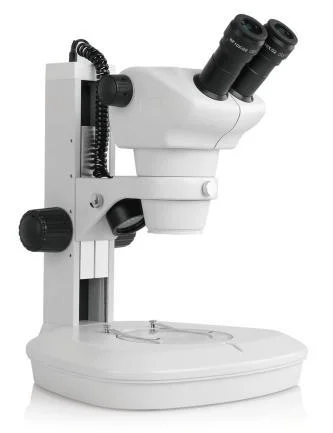

BS-3035 series Zoom Stereo Microscope offer sharp 3 D images with very competitive price. Optional auxiliary objectives, light source, stands and other accessories can fulfill different requirements.Feature
1. Well-coated optical components, providing sharp and high contrast images and ensure large depth of field.2. High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
3. Various eyepieces, objectives and other accessories can meet different requirements.
Application

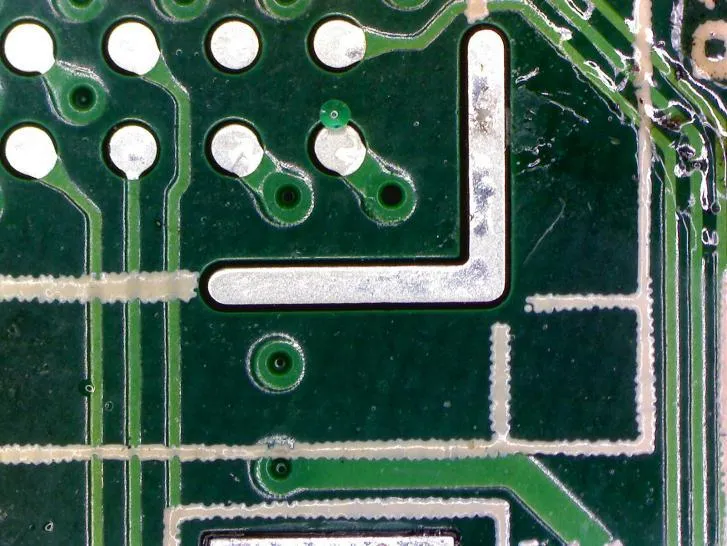

BS-3035 series stereo zoom microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.Specification
| Item | Specification | BS-3035B3 | BS-3035T4 |
| Viewing Head | Binocular Head, Inclined at 45°, Interpupillary Distance 52-75mm | * | ○ |
| Trinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm, 30:70 light distribution | ○ | * | |
| Eyepiece | Extra wide field eyepiece EW10×/22mm | * | * |
| WF15×/16mm | |||
| WF20×/12.5mm | |||
| Zoom Objective | 0.8×-5× | * | * |
| Zoom Ratio | 6.3:1 | * | * |
| Working Distance | 115mm | * | * |
| Auxiliary objective | 2×, WD 45mm | ○ | ○ |
| 0.5×, WD 210mm | |||
| Stage Plate | Frosted Glass Plate, Diameter 100mm | * | * |
| White&Black round plate, Diameter 100mm | * | * | |
| Focusing Unit | Coarse Focus Knob with tension adjustable, Moving range 100mm | * | * |
| Illumination | Incident Illumination 100V-240V/ LED | * | * |
| Transmitted Illumination 100V-240V/ LED | * | * | |
| Attachment | Photo Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras) | ○ | |
| 0.5X C-mount Adapter | * | ||
| Package | 1pc/carton, 36.5cm*31cm*52cm, 8.5kg | * | * |
